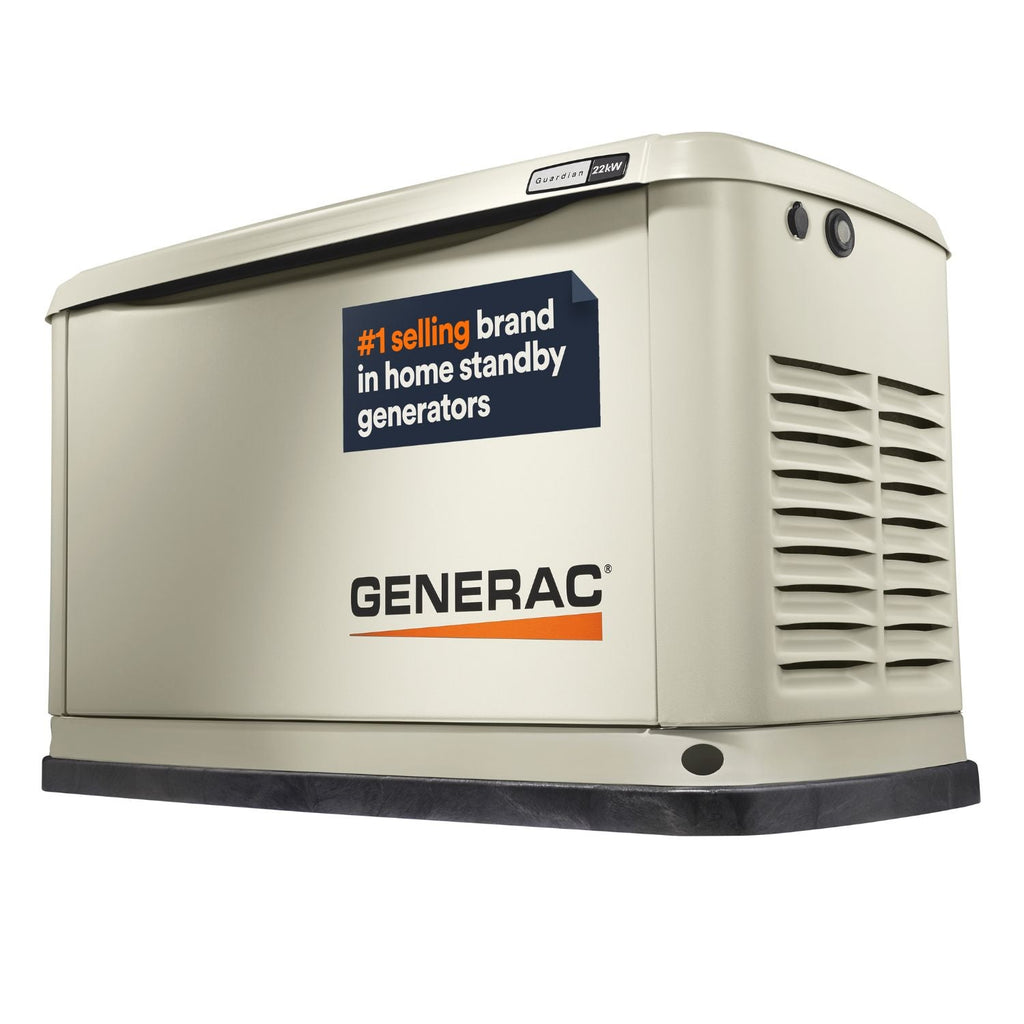

The Generac Guardian® 22kW Standby Generator Is Built For Total Whole-Home Energy Security
Are you tired of unexpected power outages disrupting your life and leaving your home vulnerable? With the Generac Guardian® 22kW Home Standby Generator, you can enjoy peace of mind knowing that your power needs are covered. In today’s world, seamless electricity is essential for the smooth operation of your home and business. This top-tier generator not only ensures a continual flow of electricity but also features advanced technology for optimal performance and convenience.
At the heart of any Generac Home Standby Generator is innovation that meets practicality, ensuring your household or business remains unaffected by external power failures. This generator, one of the most powerful air-cooled models available, delivers whole-house backup power with a host of features designed for ease of use and dependability. As a market leader in standby power, Generac combines robust output with smart technology, all at the most competitive price per kilowatt.
Prepare your home or business against unforeseen power failures with the Generac Guardian® 22kW Aluminum Home Standby Generator. Its seamless blend of power, efficiency, and advanced technological features ensures you never miss a beat, protecting your property, enhancing functionality, and offering the best return on your investment. Experience uninterrupted power and the ultimate in convenience today.
Generac 22kW Home Standby Generator Key Features & Highlights
Power Output & Coverage on Propane or Natural Gas
This Generac Home Standby Generator has 22kW of rated power on propane (LP) and 19.5kW on natural gas (NG), capable of providing whole-house backup for many homes.
Power Quality & Engine Reliability

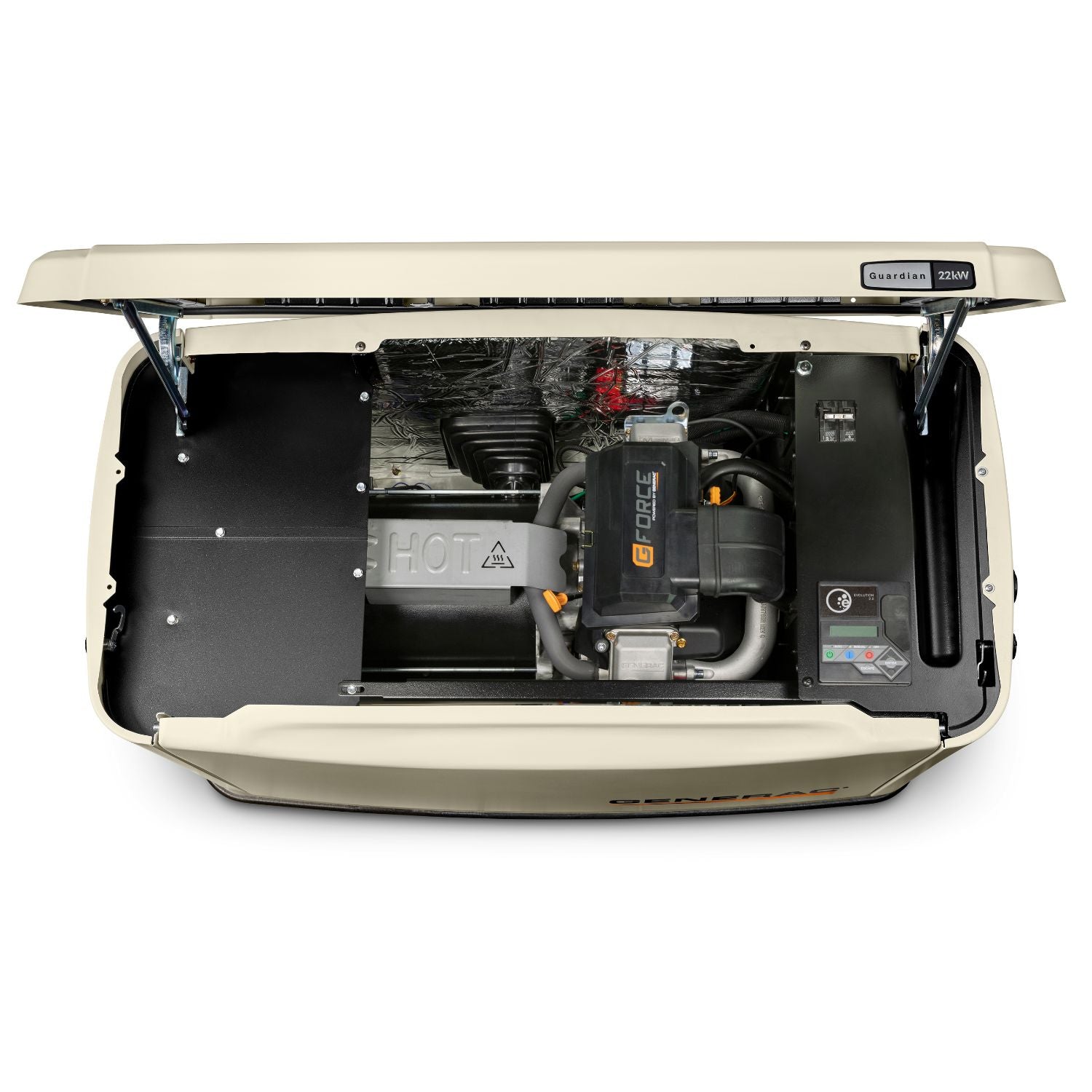

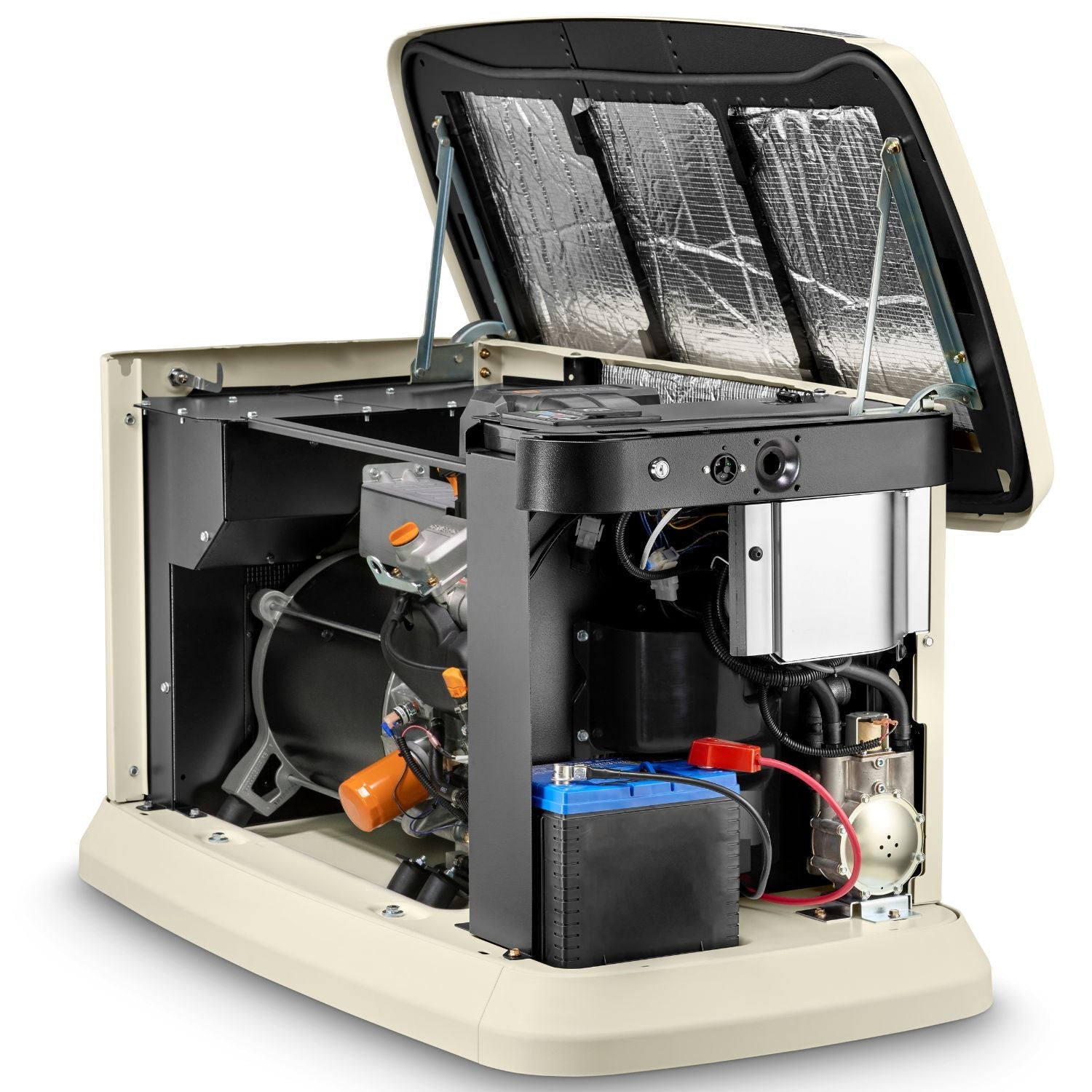

True Power™ Technology delivers clean power with <5% total harmonic distortion (THD), safe for sensitive electronics and appliances Generac G-Force Engine (999 cc, OHVI, pressure-lubricated) for long-lasting, low-maintenance reliability.
Self-Test & Efficiency
Quiet-Test™ Self-Test Mode runs at reduced RPM for a 5 or 12-minute test, offering quieter operation and reduced fuel use.
Controls, Monitoring & Connectivity
Mobile Link™ Wi-Fi Remote Monitoring (free) lets you view status, maintenance alerts, and battery condition from a smartphone, tablet, or PC. Evolution™ Controller with multilingual LCD for intuitive status and maintenance monitoring.
Build Quality & Installation Ease
All-aluminum enclosure with RhinoCoat™ powder coating for corrosion resistance and weather durability. Can be installed as close as 18 inches to a home (check local codes). Includes a composite mounting pad and optional integral sediment trap for easier installation and added engine protection.
Generac 22kW Home Standby Generator Warranty
Generac provides a 5-year warranty policy, ensuring the absence of defects in materials, workmanship, and performance during the warranty period.
What's Included

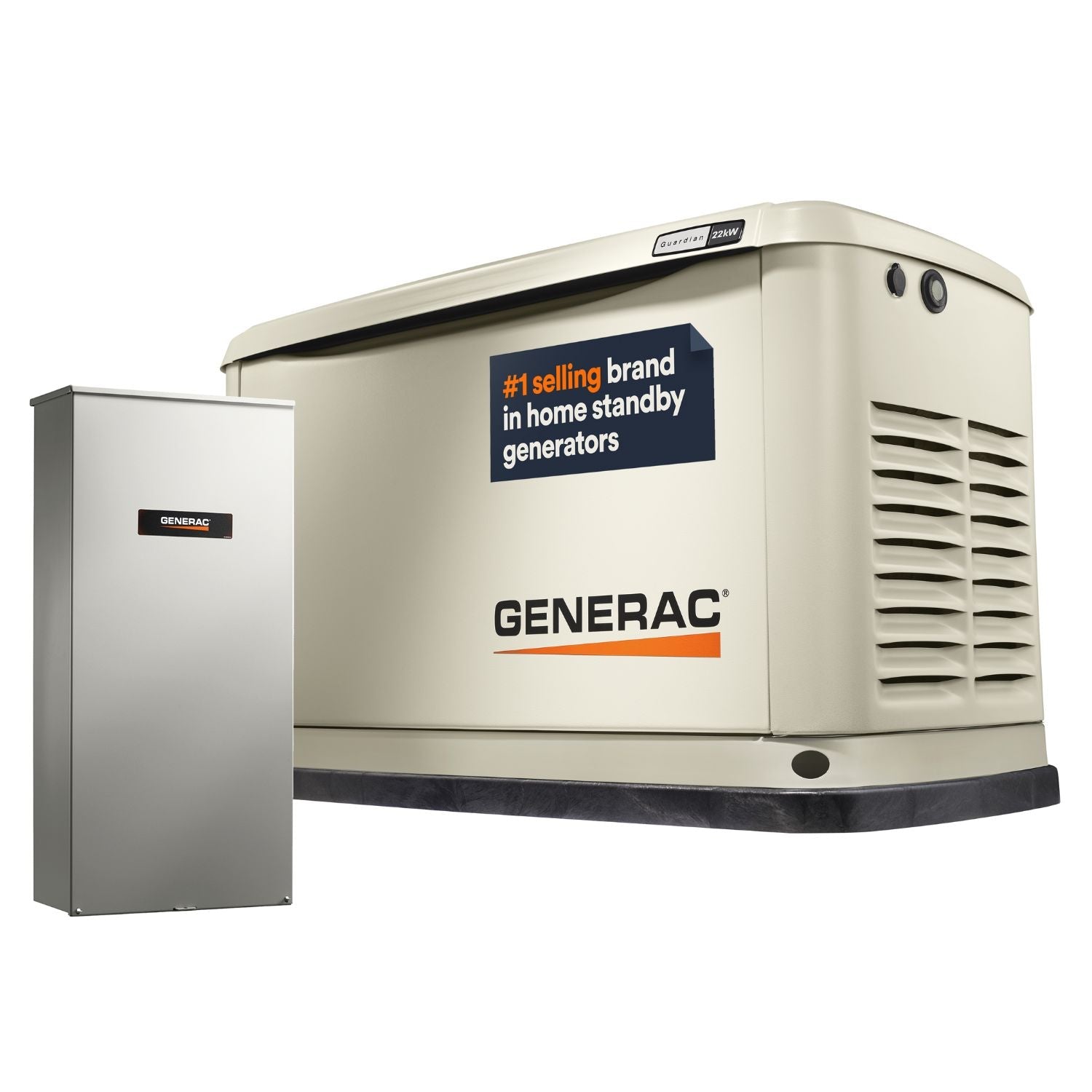

- 1 x Generac Guardian® 22kW Aluminum Home Standby Generator
- 1 x 200A Transfer Switch (optional)
Generator 22kW Home Standby Generator Specifications
Generator 22kW Home Standby Generator Specifications
|
| Rated Max Power (LP) |
22,000 Watts |
| Rated Max Power (NG) |
19,500 Watts |
| Rated Voltage |
240 Volts |
| Rated Load Current (LP / NG) |
91.7 (LP) | 81.3 A (NG) |
| Total Harmonic Distortion |
Less than 5% |
| Main Line Circuit Breaker |
100 Amps |
| Phase |
1 |
| Number of rotor poles |
2 |
| Power factor |
1.0 |
| Rated AC frequency |
60 Hz |
| Battery requirement (not included) |
12 Volts, Group 26R 540 CCA Minimum or Group 35AGM 650 CCA Minimum |
| Unit weight (lb/kg) |
466/211 |
| Dimensions (L x W x H) in / cm |
48 x 25 x 29/121.9 x 63.5 x 73.7 |
| Sound output in dB(A) at 23 ft (7 m) with generator operating at normal load |
67 |
| Sound output in dB(A) at 23 ft (7 m) with generator in Quiet-Test™ low-speed exercise mode |
57 |
| Exercise duration |
5 min |
| Engine Specifications |
|
| Engine type |
GENERAC G-Force 1000 Series |
| Number of cylinders |
2 |
| Displacement |
999 cc |
| Cylinder block |
Aluminum w/ cast iron sleeve |
| Valve arrangement |
Overhead valve |
| Ignition system |
Solid-state w/ magneto |
| Governor system |
Electronic |
| Compression ratio |
9.5:1 |
| Starter |
12 VDC |
| Oil capacity including filter |
Approx. 1.9 qt/1.8 L |
| Operating rpm |
3,600 |
