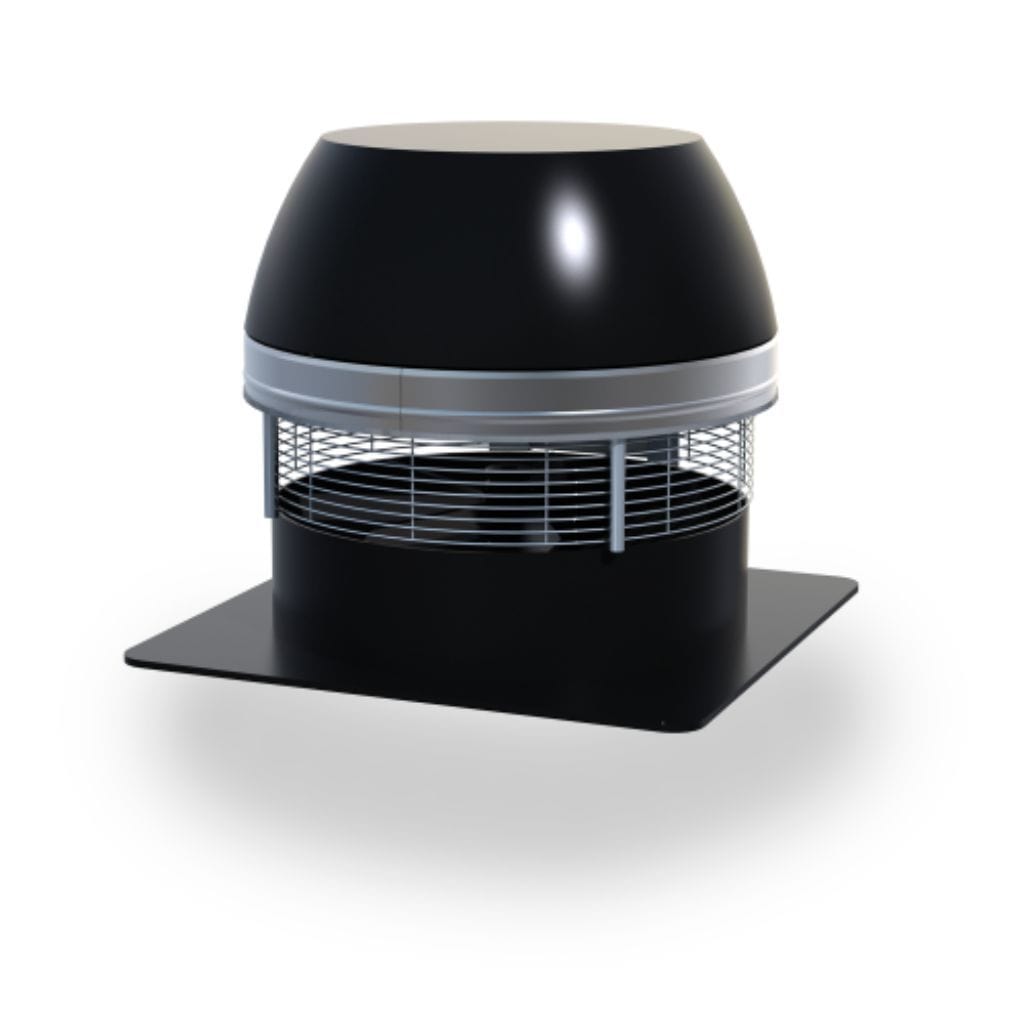

Name: Enervex - RSHT 016, Chimney Fans, Horizontal Discharge
Brand: Enervex
Price: 7194.0 USD
Availability: InStock

Enervex - RSHT 016, Chimney Fans, Horizontal Discharge - by Enervex | Buy at Agent BBQ

Roll over image to zoom in Click on image to zoom

When it comes to optimizing your chimney system for horizontal discharge applications, there's one name that stands above the rest—Enervex RSHT 016 Chimney Fans. These fans are the pinnacle of precise draft control, offering a safety and efficiency boost that's nothing short of transformative.

Manufactured with the utmost dedication to craftsmanship and quality, Enervex RSHT 016 Chimney Fans are engineered to meet the demands of the most challenging environments. These fans are the go-to choice for commercial kitchens, industrial settings, and businesses that require exceptional draft control to ensure a safe and efficient working space.

Benefits:

Unparalleled Draft Control: Achieve unparalleled draft control, making sure your chimney system operates flawlessly.
Tailored for Horizontal Discharge: Expertly designed for horizontal discharge, these fans are tailored to deliver peak performance.
Superior Craftsmanship: These fans are crafted with precision engineering and high-quality materials for unmatched reliability.
Banish Backdrafting: Bid farewell to the risk of backdrafting, guaranteeing a safer indoor environment.
Eliminate Smoke Spillage: Stop smoke spillage in its tracks, ensuring your chimney system performs optimally.
Commercial-Grade Reliability: Perfect for the demanding conditions of commercial kitchens and industrial setups.
Professional's Choice: Enervex RSHT 016 Chimney Fans are the preferred choice for professionals who expect nothing less than excellence in chimney performance.

Standard Equipment:

2"x4" or 4"x4" Junction Box with Cover and Conduit
Fiber Mat and Mounting Brackets
Bird Screen
5 Amp FSC Fan Speed Control

Common Companion Product:

Solid Fuel Fan Control
Manual Fireplace Damper

Features:

Quiet Operation
Variable-speed motor
Use with gas-fired appliances
Comes in 4 sizes
Complete fan and control packages available from a single manufacturer
Low operating costs
6-months Performance Guarantee

Specification:

Capacities	0-1,500 CFM (450-2,550 m3/h)
Material	Stainless Steel Housing and Axial Vane
Drive	Axial Vane
Motor	Variable Speed, TEFC, Class H
Max. Temp	Interm. 1400° (760°C), Contin. 1000°F (540°C)
Warranty	2-Year Factory Warranty 10-Year Warranty Against Corrosion Perforation
Listings	UL 378 Standard for Draft Equipment UL 705 Standard for Power Ventilators CSA3-B255-M81 Standard for Mechanical Flue Gas Exhauster

Model			RSHT 016
Discharge			Horizontal
Fan Type			Axial Vane
Motor Type			Totally enclosed, Variable speed, Class F
Voltage		VAC	1x120V @ 60 Hz
Amperage		Amps	4.40
RPM			1580
CFM		at 0.0Ps	1460
Motor Output		hp / kW	0.47 / 0.35
Weight		lbs / kg	47.2 / 21.4
Dimensions	A	in / mm	15.7 / 400
	B x B	in / mm	18.8 / 478
	C	in / mm	17.4 / 441
	D	in / mm	3.9 / 100
	E	in	15.0 / 380
Temperature Rating		Interm.	1400ºF / 760ºC
Temperature Rating		Cont.	1000ºF / 538ºC

Downloads:

Product brochure
Installation Manual - RSHT

About The Manufacturer:

ENERVEX provides a full line of listed, fully integrated commercial venting and mechanical draft control systems for a truly one-stop design from boiler outlet to chimney termination. ENERVEX products are economical, environmentally sustainable, aesthetically pleasing, reliable, and up to code for commercial projects around the globe.
