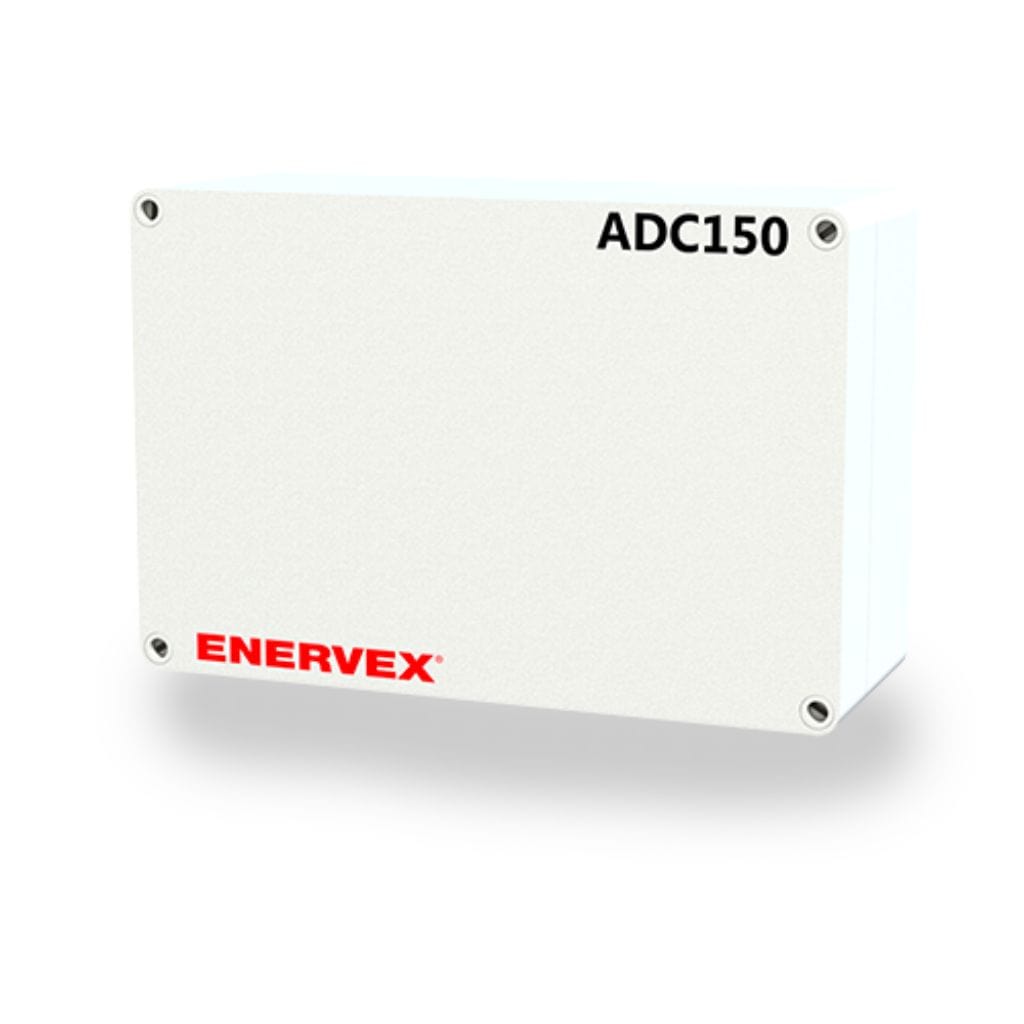

Name: Enervex - ADC150 Fan Control
Brand: Enervex
Price: 2395.0 USD
Availability: InStock

Enervex - ADC150 Fan Control - by Enervex | Buy at Agent BBQ

Roll over image to zoom in Click on image to zoom

The ENERVEX ADC150 is a Modulating Fan Control used with up to 2 appliances to monitor and maintain a constant draft or pressure in a chimney or duct. The ADC150 can be used with models RS, RSHT, and GSV fans. It can control the fan speed directly or via a Variable Frequency Drive (VFD, sold separately). The ADC150 is typically used to control the draft of a gas-fired, sealed fireplace or water heaters.

The ADC150 monitors the draft in a chimney system via a connection to a pressure transducer (XTP) attached to the chimney, and maintains the draft by modulating the fan speed. It provides a 10-120V AC power to single phase fans and 0-10V DC control signal to control 3-phase fans via a variable frequency drive.

The control has an integrated safety system that assures the heating appliance(s) is shut down in case of insufficient draft after 15-180 seconds (user adjustable). The ADC150 has an integrated damper relay that works with ENERVEX MFD (Mechanical Fireplace Damper) to automatically open the damper prior to fan initialization and close the damper after the appliance shuts down. End-switches in the damper actuator wired to the ADC150 ensure the damper must be fully open prior to allowing the appliance to operate. The control also features a post purge function (3 min) to evacuate the chimney system of residual flue gases after the appliance shuts down.

Material

The enclosure is made of NEMA 1 rated ABS plastic.

Standard Equipment

ADC150 Control Box
XTP Pressure Transducer
Stack Probe
6' Silicone Tubing

Listings

The ADC150 Fan Control is ETL Listed in the U.S. and Canada:

UL 508 Standard for Industrial Control Equipment (17th Ed.)
CSA C22.2 No. 14-05 - Standard for Industrial Control Equipment

Warranty

2-Year Factory Warranty. Complete warranty conditions are available from ENERVEX Inc.

Features

Quiet Operation
The 0-10VDC control signal for EDrive and 10-120VAC for variable speed
Integrated safety system with adjustable shutdown time
Integrated damper relay that works with an EcoDamper.
End-switches in an EcoDamper actuator can be wired to the ADC150
Post purge function (180 sec) to evacuate residual flue gases after the fireplace shuts down.

Specification

Power Supply	1 x 120VAC
Amperage	6.3A
Control Mode	Continuous or Intermittent
Control Signals	0-10 VAC (for VFD) and 120/240 VAC (for direct connect)
Range Of Operation	0-0.6 inWC / 0-150 Pa
Tolerance	0.01 inW (3 Pa) +/- 10%
Output	10-120VAC / 0-10VDC
Control Relays	(6) Max 120VAC/8A
EMC Standard	Emission: EN50 081-1, Immunity: EN50 081-2
Insulation Class	NEMA 1 (IP 20)
Warranty	2-Year Factory Warranty
Listing Certification	UL 60947, Standard for Industrial Control Panels CSA C22.2 No. 14-95, Standard for Industrial Control Equipment

Downloads

About The Manufacturer:

ENERVEX provides a full line of listed, fully integrated commercial venting and mechanical draft control systems for a truly one-stop design from boiler outlet to chimney termination. ENERVEX products are economical, environmentally sustainable, aesthetically pleasing, reliable, and up to code for commercial projects around the globe.
